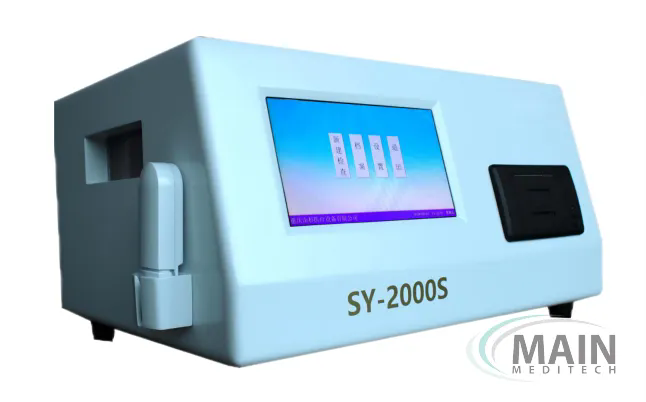

DEEP VISION TESTER

Technical Parameter:
1. The operation adopts intelligent touch design and 6000K LED display, IC card identification
2. Range of moving rod: Relative centerline ± 80mm, Rod diameter:3mm, Pole spacing: 30mm
3. Movement speed: 50mm/s (test), 25mm/s (practice)
4. Background light: 12v 9w
5. Illuminance of the lighting during test: 1500lx±500lx（1000lx-2000lx）
6. Test accuracy: ±0.1mm, Zero calibration error: ±0.1mm
7. Operating voltage: AC 100~240V, 50/60Hz, Power consumption: less than 140W
8. Working environment: temperature 0-40ºC, humidness 85%（40ºC）
9. Detection data can be automatically displayed, uploaded and evaluated in real time
10. The product has a third-party quality inspection report
11. Configuration List: 1 set of main device, 1 pcs power cord, 1 pcs IC card, 1 pcs wireless responder, 1 copy of instruction manual
