Home > Slit Lamp > SLIT LAMP SL-1S

1/1

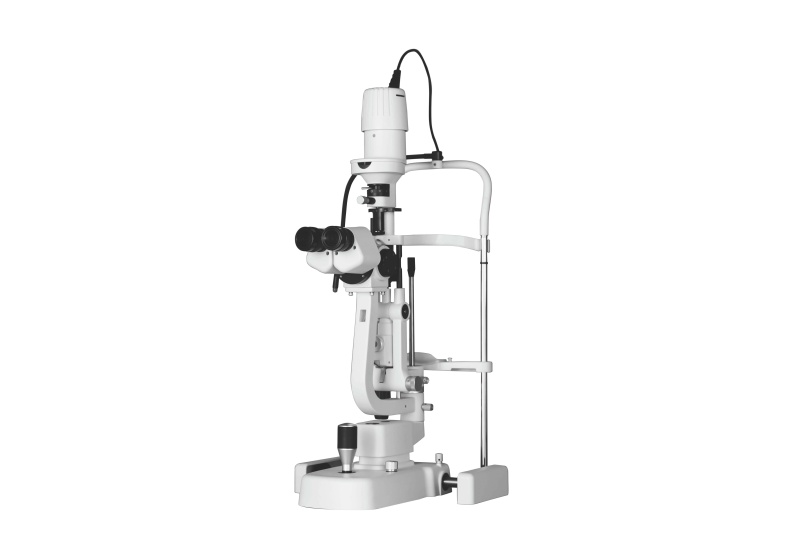

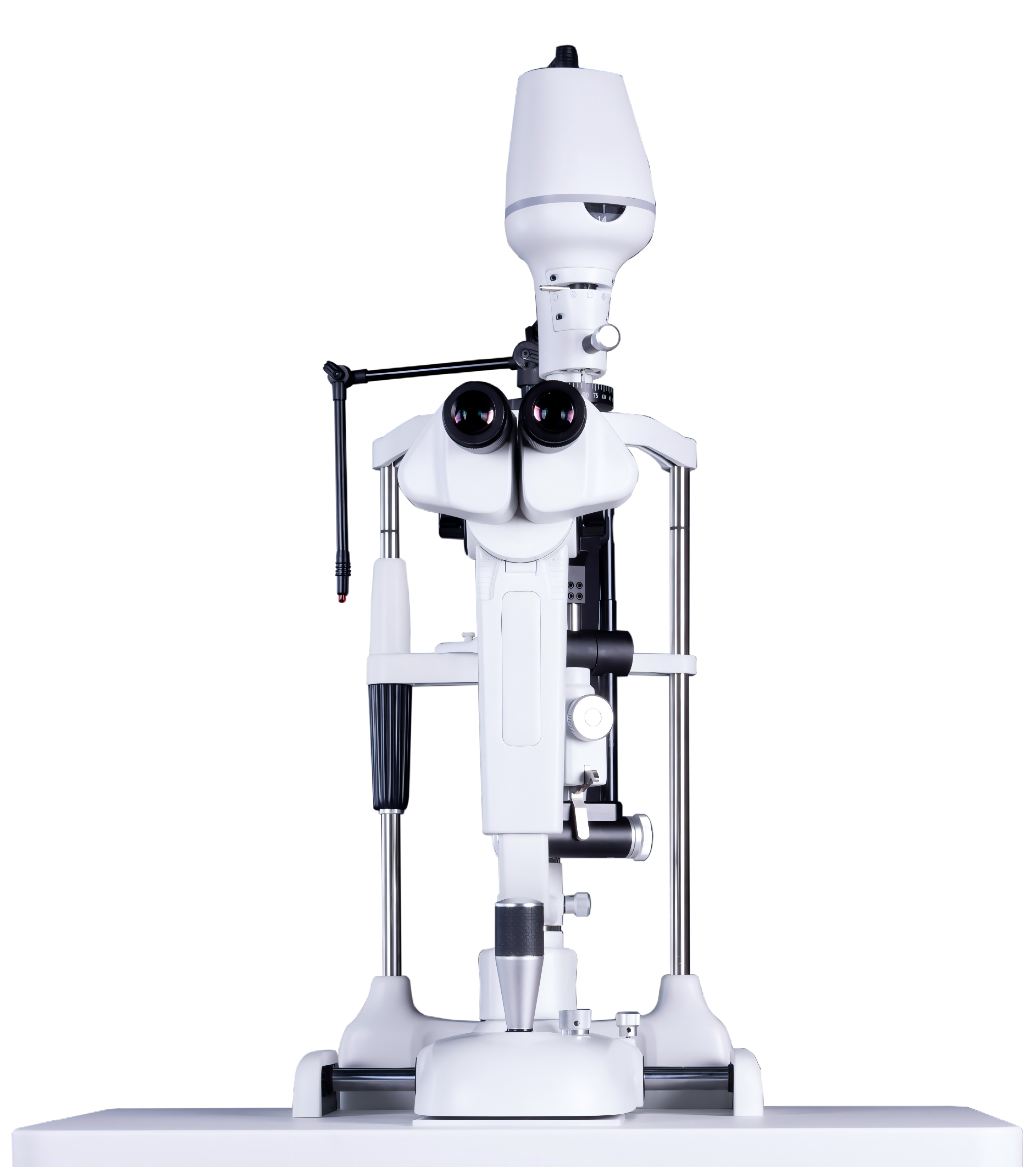

SLIT LAMP SL-1S

SL-1S Slit Lamp is designed for basic diagnostic in the field of ophthalmology. It combines superior optics with user-friendly features, ensuring accuracy and efficiency in your practice. Its warm LED illumination not only offers better conformity during examinations but also extends the lamp's lifespan, making it a reliable choice for your diagnostic needs.

Please contact our sales team.
+86-23-63732637
info@mainmeditech.com

Received successfully

Coupon Code

Download

DESCRIPTION
TECHNICAL PARAMETER

Drum Magnification:
10X, 16X, 25X

Galilean Converging Binocular Ocular System

Superior optic quality, provides stereoscopic and comfortable view

With broad beam, wild field and high depth of field

Warm LED Illumination, Better Conformity, Longer Life Time

Work 50 thousand hours,and suitable for human tissue.

Precision Machining Makes Smooth and Flexible Movement

Brightness Control Continuously

Interface for laser and applanation tonometer reserved

Technical Parameter
Microscope Type	Galilean Converging Binocular Ocular System
Magnification Changer	3 Steps Manual Rotary Drum
Magnification	10X,16X,25X
Eyepiece Magnification	12.5x
Visual Angle of Eyepiece	10°
PD Range	52mm-85mm
Diopter	±8D
Visual Field Diameter	10X(22.8mm), 16X(14.5mm), 25X(8.8mm)
Illumination Part
Light Source	Upper light source with Warm LED (12V 20W)
Illuminance	≥ 200,000 Lux
Brightless control	Continuously adjustable
Angle of Incidence(tilt)	0°, 5°, 10°, 15°, 20°
Slit Width	0mm-14mm continuously adjustable
Slit Height	In steps of 0.2, 1, 3, 5, 10, 14mm, and 0.2mm-14mm continuously adjustable
Slit Rotation	0°–180° continuously adjustable
Slit Aperture Size	Φ0.2, Φ1, Φ3, Φ5, Φ10, Φ14mm
Filter	Heat Aborption, Grey, Redfree(Green), Cobalt Blue; Yellow Filter (Optional Accessory for Observation Path)
* Voltage: 100~240V 50/60 Hz
