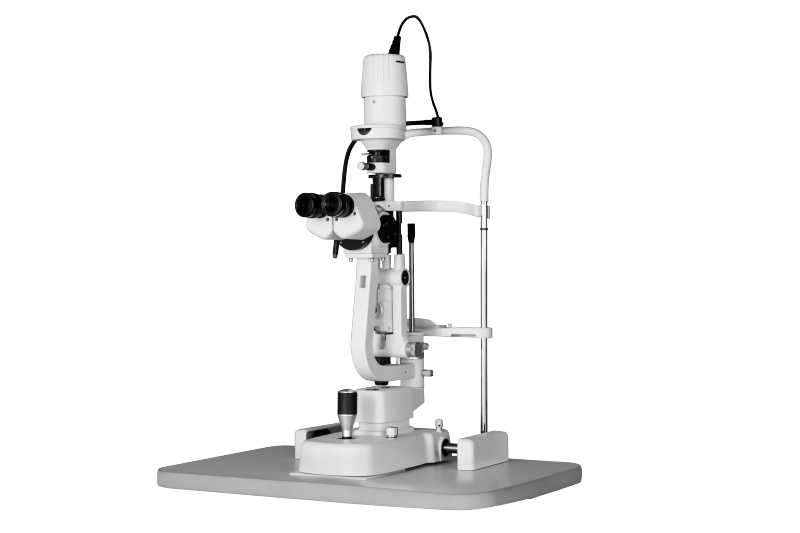

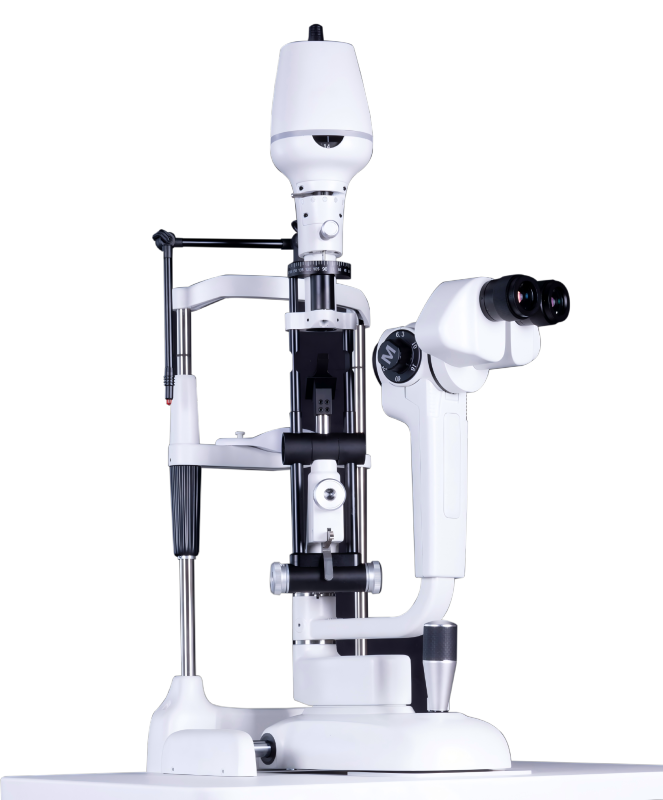

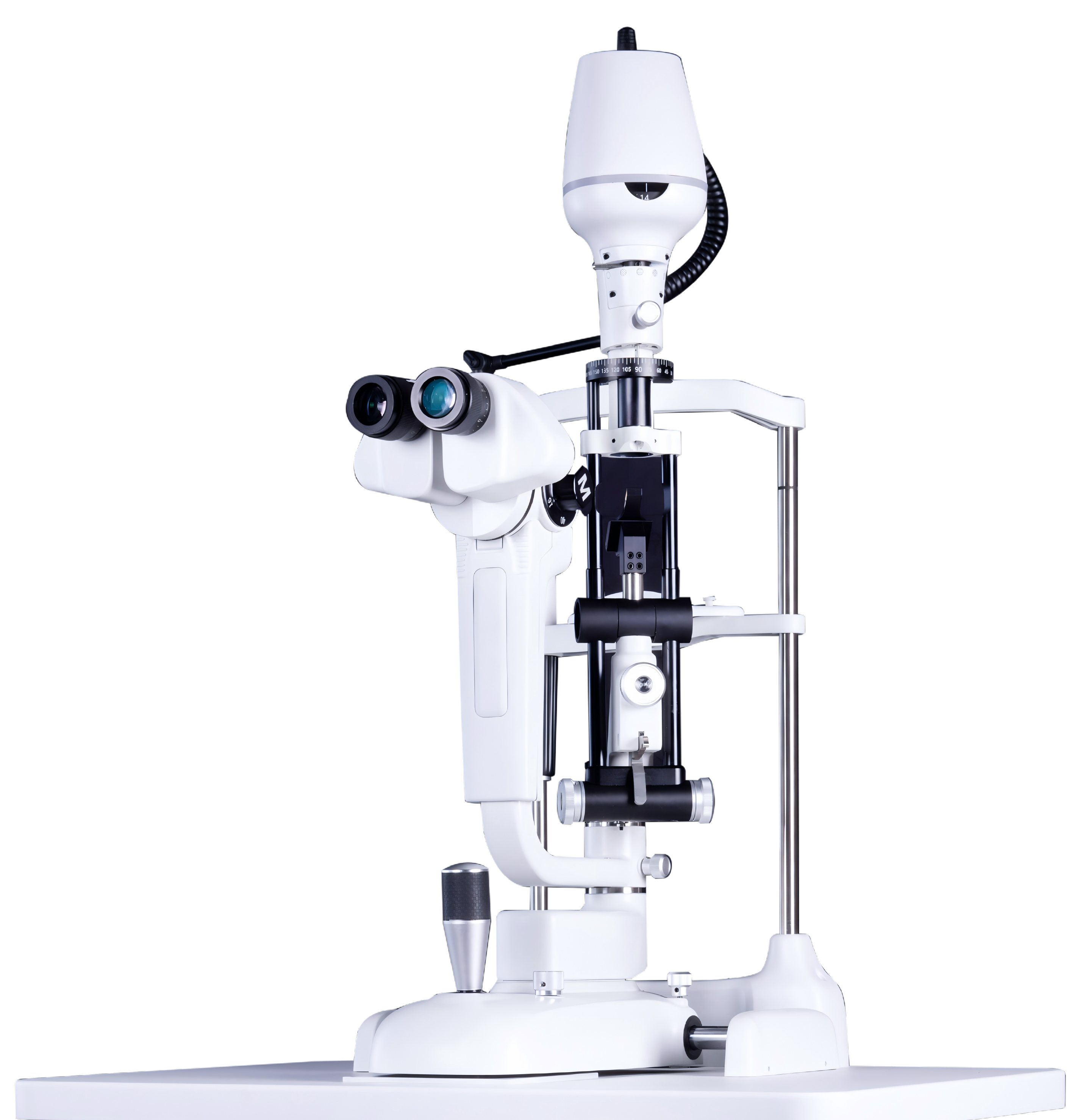

Main MediTech SL-2S Slit Lamp features a sophisticated Galilean optical system, offering five drum magnifications(6.3X,10X, 16X, 25X,40X) that allow for precise diagnostics and detailed examination of ocular structures. Its extraordinary warm LED illumination ensures optimal visibility, enhancing conformity and providing an extended lifespan compared to traditional lighting systems.
Drum Magnification:
6.3X,10X, 16X, 25X,40X
Galilean Converging Binocular Ocular System
Superior optic quality, provides stereoscopic and comfortable view
With broad beam, wild field and high depth of field
Warm LED Illumination, Better Conformity, Longer Life Time
Work 50 thousand hours,and suitable for human tissue.
Precision Machining Makes Smooth and Flexible Movement
Brightness Control Continuously
Interface for laser and applanation tonometer reserved
|
Technical Parameter
|
|
| Microscope Type | Galilean Converging Binocular Ocular System |
| Magnification Changer | 5 Steps Manual Rotary Drum |
| Magnification | 6.3X, 10X, 16X, 25X, 40X |
| Eyepiece Magnification | 12.5X |
| Visual Angle of Eyepiece | 10° |
| PD Range | 52mm-85mm |
| Diopter | ±8D |
| Visual Field Diameter | 6.3X(33.5mm), 10X(22.8mm), 16X(14.5mm), 25X(8.8mm), 40X(5.7mm) |
| Illumination Part | |
| Light Source | Upper light source with Warm LED (12V 20W) |
| Illuminance | ≥ 200,000 Lux |
| Brightless control | Continuously adjustable |
| Angle of Incidence(tilt) | 0°, 5°, 10°, 15°, 20° |
| Slit Width | 0mm-14mm continuously adjustable |
| Slit Height | In steps of 0.2, 1, 3, 5, 10, 14mm, and 0.2mm-14mm continuously adjustable |
| Slit Rotation | 0°–180° continuously adjustable |
| Slit Aperture Size | Φ0.2, Φ1, Φ3, Φ5, Φ10, Φ14mm |
| Filter | Heat Aborption, Grey, Redfree(Green), Cobalt Blue; Yellow Filter (Optional Accessory for Observation Path) |
| * Voltage: 100~240V 50/60 Hz | |
