SLIT LAMP SL-3S (TYPE D)

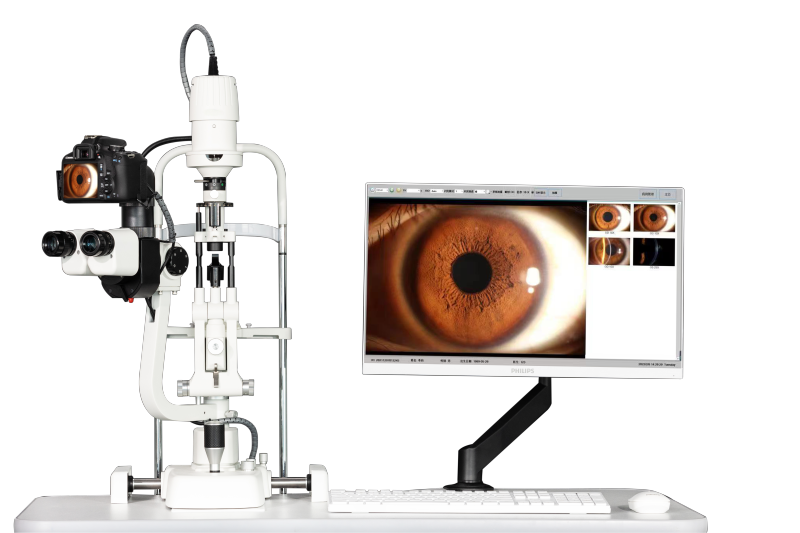

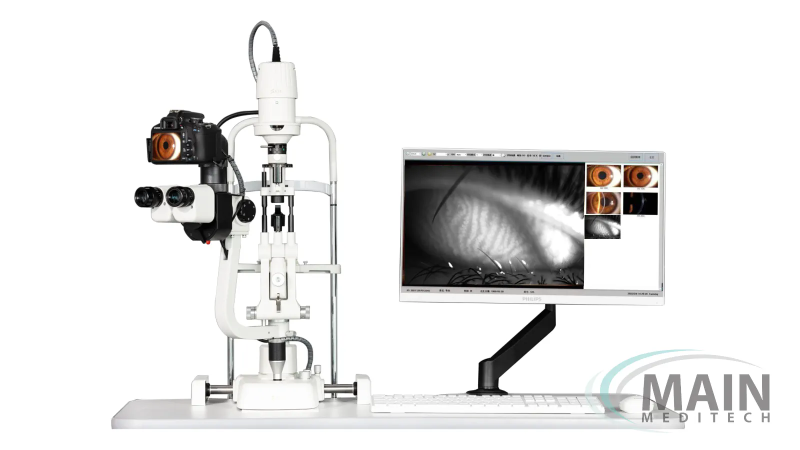

Main MediTech SL-3S(Type D) Slit Lamp with Digital Imaging System is designed for efficiency. It offers One-handed Operation for focusing, brightness adjustment, and image capturing. And it's DICOM 3.0 Compatible, making it easy to integrate with your current digital systems and ensuring seamless data management for your practice. This connectivity not only fosters a more efficient working environment but also enhances patient record keeping.

+86-23-63732637
info@mainmeditech.com

Received successfully

Coupon Code

Download

DESCRIPTION
TECHNICAL PARAMETER

(Optional function for Meibomian Photography)

Parallel type, Galilean system

Superior optic quality, provides Stereoscopic & Comfortable View

With broad beam, wild field and high depth of field

Warm LED Illumination, Better Conformity, Longer Life Time

Work 50 thousand hours,and suitable for human tissue.

Professional & Multi-functional Software With Simple Humanized Human- computer Interface & Easy Operate

Both of image capturing function and video capturing function configured, Image processing for better Symptoms Diagnose

Backup patient database easily to guarantee data safety

Coaxial background light configured for diverse clinical operation needs

Synchronous flash compensation system, ensure uniform image quality, and reveal the details of lesion even with weak illumination light

OD/OS auto recognition

Auto recognition of magnification for captured images and reveal under each image

One-handed operation to focusing, brightness adjusting and taking pictures

DICOM 3.0 Available

Precision Machining Makes the Smooth and Flexible Movement

Technical Parameter
Optical Part
Microscope Type	Galilean Converging Binocular Ocular System
Magnification Changer	5 Steps Manual Rotary Drum
Magnification	6.3X,10X,16X,25X,40X
Eyepiece Magnification	12.5x
Visual Angle of Eyepiece	10°
PD Range	52mm-85mm
Diopter	±8D
Visual Field Diameter	6.3X(33.5mm), 10X(22.8mm), 16X(14.5mm), 25X(8.8mm), 40X(5.7mm)
Illumination Part
Light Source	Upper light source with Warm LED (12V 20W)
Illuminance	≥ 200,000 Lux
Brightness control	Continuously adjustable
Angle of Incidence(tilt)	0°, 5°, 10°, 15°, 20°
Slit Width	0mm-14mm continuously adjustable
Slit Height	In steps of 0.2, 1, 3, 5, 10, 14mm, and 0.2mm-14mm continuously adjustable
Slit Rotation	0°–180° continuously adjustable
Slit Aperture Size	Φ0.2, Φ1, Φ3, Φ5, Φ10, Φ14mm
Filter	Heat Aborption, Grey, Redfree(Green), Cobalt Blue; Yellow Filter (Optional Accessory for Observation Path)
Imaging system
Image collector	DSLR	Coaxial Background illumination	●
Eyepiece Splitting Ratio	50%	Synchronous flash compensation system	●
Camera Splitting Ratio	50%	DICOM Connectable	●
* Voltage: 100~240V 50/60 Hz
